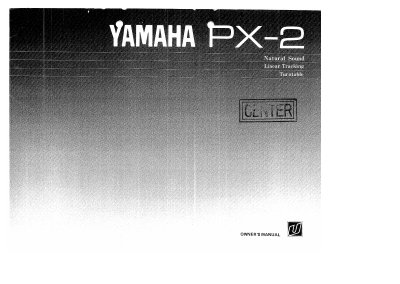

This document is the Owner's Manual for the Yamaha PX-2 Linear Tracking Stereo Turntable. It details the features of the unit, including its linear tracking straight arm, fully automatic control mechanisms, quartz oscillator phase-locked turntable, and heavyweight platter. The manual provides instructions for assembly, connections, and the identification of controls.
| Tonearm type | Linear tracking straight arm |
|---|---|
| Motor type | DC 4-phase, 8-pole coreless Hall motor |
| Starting torque | Not less than 1 kg-cm |
| Speed accuracy | +20 ppm or better |
| Platter diameter | 31 cm |
| Cabinet material | 5 mm-thick aluminum diecast panels |
| Total weight | 17 kg |
| Supported voltages | 110/120/130/220/230/240 V AC, 50/60 Hz |
The head shell permits attachment of cartridges within 5 to 11g without using sub-weights.
The PX-2 is driven by a DC 4-phase, 8-pole coreless Hall motor.
The motor has a starting torque of not less than 1 kg-cm.
A diamond-tip stylus should be replaced after 200 to 300 hours of use.
