The NS-AW992 is an outdoor speaker from Yamaha that is water, dust, and shock resistant.

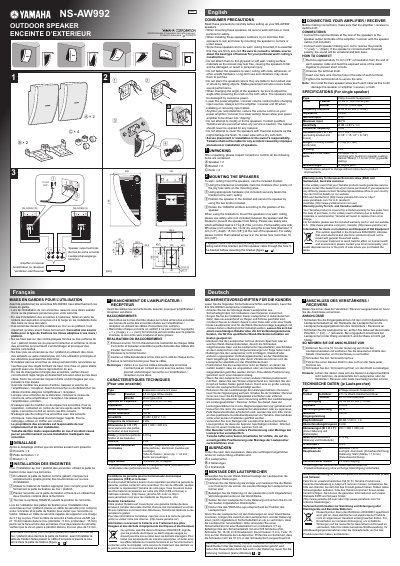

This document provides installation instructions for the Yamaha NS-AW992 outdoor speaker. It details safety precautions for mounting the speakers on walls or ceilings, including the use of safety wire and appropriate fasteners. The guide explains how to unpack the contents and securely attach the speakers using the included brackets.
| Type | 2-Way Acoustic Suspension |
|---|---|
| Driver Tweeter | 2.5 cm (1"} soft dome type |
| Woofer | 20 cm (8") cone type |
| Frequency response | 50 Hz to 20 KHz (-10 dB) |
| Impedance | 6 ohms |
| Nominal input | 60 W |
| Maximum input | 180 W |
| Sensitivity | 90 dB/2.83V,1m |
| Crossover frequency | 6 kHz |
| IP rating | IPX3 |
Use safety wire which withstand load is 3.7 kg (8.2 Ibs.) or more.
The installed screw must be in the screw hole more than 10 mm (3/8"),
The sound will be unnatural and lack bass.
