NS-C225 Speaker System User Manual

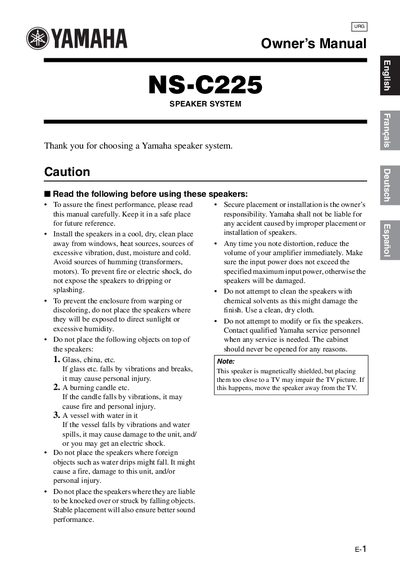

This document is the Owner's Manual for the Yamaha NS-C225, a 2-way acoustic suspension speaker system. It covers essential safety precautions, such as avoiding direct sunlight and keeping objects away from the unit to prevent injury or damage. The guide details proper placement on the floor or wall and warns against placing the speaker on top of a TV unless specific fasteners are used.
| Type | 2-way acoustic suspension speaker system |
|---|---|
| Driver | 6.5 cm (2.6") cone woofer x 4, 3 cm (1") dome tweeter |
| Impedance | 6Q |
| Frequency Response | 65 Hz to 50 kHz |
| Nominal Input Power | 40 W |
| Maximum Input Power | 120 W |
| Crossover Frequency | 3 kHz |
| Weight | 2.8 kg (6.2 Ibs) |
You can place the speaker on top of the TV only if you use the provided fasteners to secure it, and the TV area is larger than the speaker's bottom area.
Remove 10 mm of insulation from the wire ends, twist them tightly, and ensure bare wires do not touch each other to prevent damage.
If one speaker is connected with reversed polarity, the sound will be unnatural and lack bass.
