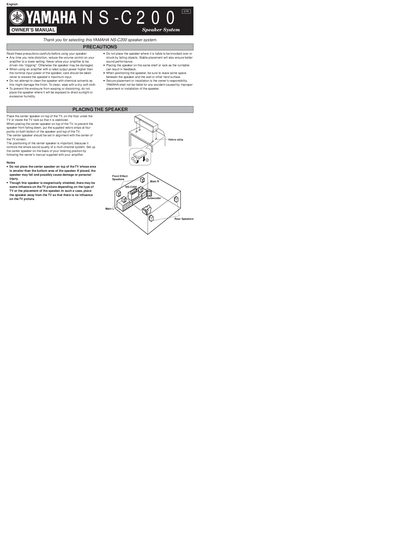

This manual is the owner’s manual for the YAMAHA NS-C200 speaker system. It describes the precautions, placement, connection, and operation of the speaker system.
This document is the owner's manual for the Yamaha NS-C200 speaker system. It provides essential safety precautions regarding volume control and placement to prevent damage or injury. The guide details how to position the center speaker relative to a television and includes instructions on removing the front cover if desired.
| System Type | 2-way 3-speaker bass reflex speaker system (Magnetically-shielded type) |
|---|---|
| Woofer | 13 cm cone woofer x 2 |
| Tweeter | 3 cm dome tweeter |
| Nominal Impedance | 8 ohms |
| Frequency Response | 57 Hz — 35 kHz |
| Sensitivity | 86 dB |
| Crossover Frequency | 2.5 kHz |
| Dimensions (W x H x D) | 168 x 130 x 201 mm |
| Weight | 7kg |
Connect the screw-type input terminals at the rear of the speaker to the speaker output terminals of your amplifier with speaker cables, ensuring correct polarity (+/-).
Yes, the front cover is fastened at four points and can be removed by holding both sides and pulling straight away from the speaker.
Do not place it on a TV whose area is smaller than the bottom area of the speaker, as this may cause the speaker to fall and cause damage or personal injury.
