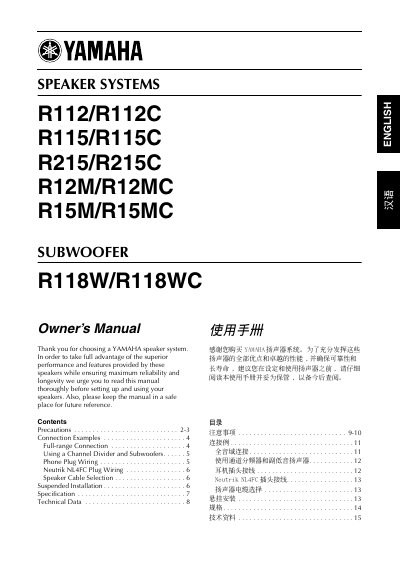

YAMAHA R112/R112C/R115/R115C/R215/R215C/R12M/R12MC/R15M/R15MC user manual

Owner's Manual for YAMAHA speaker system

Brand: Yamaha
Document type: User Manual
Language: English
Pages: 9
File format: PDF
File size: 300 KB
Published: 13 June, 2012
Updated: 30 September, 2023
Models: R112, R112C, R115, R115C, R215, R215C, R12M, R12MC
MD5 checksum: 9EE6815C1228EFBB8CEF7E0B5BD5D044
PDF: YAMAHA R112/R112C/R115/R115C/R215/R215C/R12M/R12MC/R15M/R15MC user manual PDF

About this manual

This document serves as the owner's manual for various Yamaha speaker system models, including the R112, R115, R215 series and their M/C variants. It provides essential safety warnings regarding power amplifier usage, cable connections, and installation environments to ensure maximum reliability and longevity of the equipment.

What's inside

Precautions
Connection Examples
Phone Plug Wiring
Neutrik NL4FC Plug Wiring
Speaker Cable Selection
Suspended Installation
Specifications
Technical Data

Specifications

Nominal Impedance (R112/R115)	8 ohms
Frequency Range (R112/R112C)	55 Hz - 20 kHz (-10 dB)
Sensitivity (R112/R112C)	97 dB SPL (1W,1 m)

Frequently asked questions

What steps should I take if I notice smoke, odor, or noise from the speaker?

Turn the power amp off immediately, remove the power cord from the AC outlet, and consult your dealer for repair.

How long should I wait for the poly switch to reset if the high-frequency output is lost?

Immediately remove power from the unit and wait for two to three minutes before re-applying power.

What is the maximum number of 8-ohm speakers that can be connected in parallel to one amplifier output channel?

You should not connect more than two 8-ohm speakers in parallel, as this results in a total impedance of 4 ohms.
