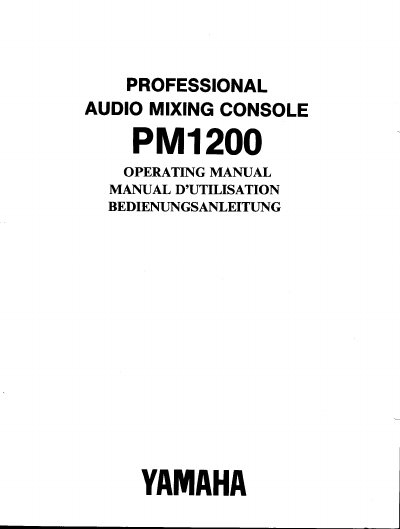

This manual provides operating instructions for the Yamaha PM1200 series mixing consoles, available in 16-, 24-, and 32-channel models. It covers the basic principles of operation, installation precautions, and front panel controls for single-input and stereo input channels, as well as the master section.
| Input Channel Types | Single-input and two-input |
|---|---|
| Pad Attenuation | 0, -10, -20, or -30 dB |
| Gain Adjustment | up to ~40 dB |
| Phantom Power | +48 V |
| High-Pass Filter | 80 Hz |
| Output Groups | Four |
| AUX Sends | Four |
US and Canadian models require 120 VAC, 60 Hz.
Yes, two consoles may be linked via the full SUB IN facilities.
XLR-3 type connectors are used, wired in accordance with DIN standards.
