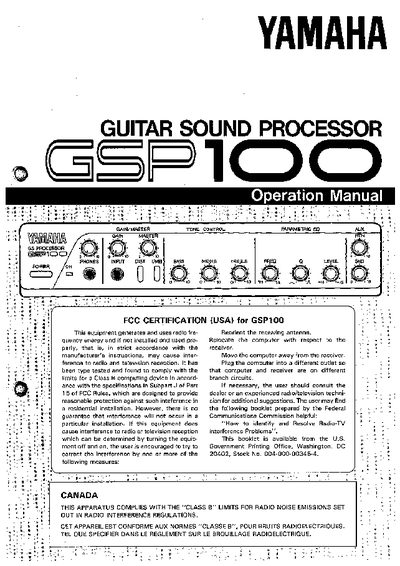

Yamaha GSP100 Guitar Sound Processor Operation Manual

About this manual

The Yamaha GSP100 is a half-rack size guitar preamplifier designed for home recordings. It features two volume controls (GAIN and MASTER), a built-in distortion circuit, an UMB circuit for stereo sound, 3-band tone controls, and a parametric equalizer.

What's inside

• Features
• Precautions
• Name and Functions of Parts
• Front Panel
• Rear Panel
• Examples for Sound Adjustment
• System Examples
• Specifications

Frequently asked questions

What power supply is required?

The unit requires a DC +12V power supply.

Which AC adaptors are compatible?

Only the YAMAHA PA-1B or PA-5 AC adaptor should be used.

How do I activate the distortion effect?

Press the DIST switch to turn on the built-in distortion circuit.
