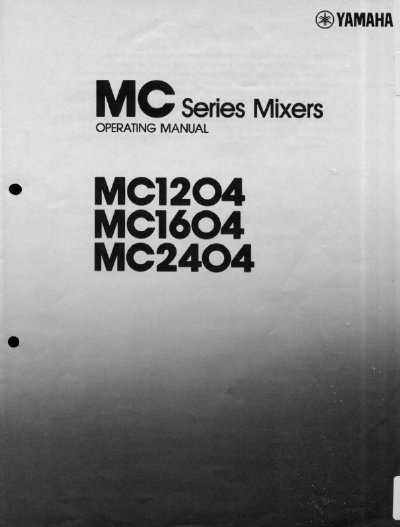

This operating manual covers the Yamaha MC-series mixers, which are designed for sound reinforcement, recording, theater, and production applications. The document provides instructions on using input channels, echo returns, group outputs, foldback sections, phones, and talkback features.
The guide details front panel operations including PAD switches, EQ controls, faders, and various buttons like CUE and CH ON. It also explains rear panel connections for VU meters, inputs, and outputs such as FB OUT and ECHO SEND.
| Talkback Input Impedance | 50—250 ohms |
|---|---|
| Talkback Input Level | -50 dB |
They adjust the input sensitivity of the MC mixers over a wide range.
The PEAK LED lights whenever the channel's post-EQ, pre-fader signal comes within 3 dB of clipping.
It turns the respective channel ON or OFF for rapid punch-ins or to temporarily kill a channel.
