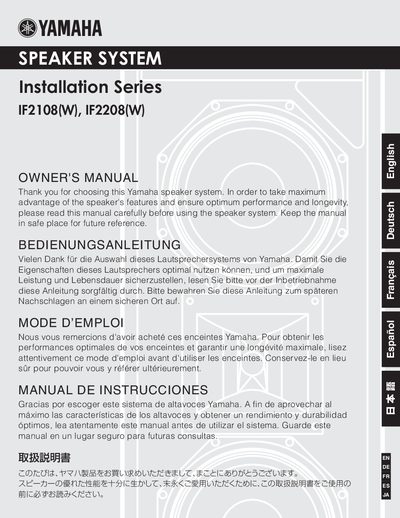

Yamaha IF2108/IF2208 Owner's Manual

This manual provides detailed instructions on how to use the Yamaha IF2108(W) and IF2208(W) speaker systems.

Brand: Yamaha
Document type: User Manual
Language: English
Pages: 6
File format: PDF
File size: 352 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 165171477F8A1905D0E6616CC901CE2F
PDF: Yamaha IF2108/IF2208 Owner's Manual PDF

About this manual

This Owner's Manual covers the Yamaha IF2108(W) and IF2208(W) full-range speaker systems. It includes safety precautions, installation guidelines for suspended and mounted setups, and instructions for rotating the horn to adjust coverage patterns. The document also details the specifications and dimensions of both models.

What's inside

Safety Precautions
Handling Caution
Wiring
Suspended Installation
Using eye bolts for suspension
Rotatable horn
Specifications
Dimensions

Specifications

System Type	2-way full-range Speaker
Frequency Range (10dB)	55 Hz - 19 kHz
Power Rating	200 W2
Nominal Impedance	8 ohms
Sensitivity (1W@1m)	95 dB SPL
LF Component	2 x 8" (20cm) Woofer
HF Component	Rotatable Constant Directivy Horm
Dimensions (IF2108)	673 x 283 x 250 mm
Weight (IF2108)	19 kg

Frequently asked questions

How do I rotate the horn on the speaker?

Remove the grille and horn screws, pull out the horn, rotate it 90 degrees, and re-install it.

What is the maximum load for eye bolts at a 0-degree angle?

The load for each eye bolt must be less than 740 kg when suspending at an angle of 0 degrees.

What type of cable should be used for speaker connections?

You must use proper speaker cable, not shielded instrument or line cable, for all speaker connections.
