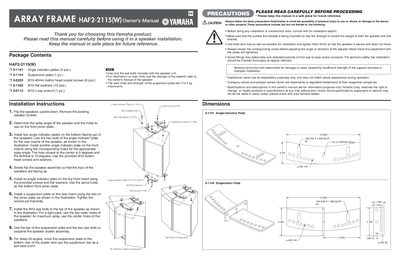

This manual introduces the installation method of Yamaha HAF2-2115(W) suspension rod, including suspension rod components, installation steps, precautions, etc.
This manual provides safety precautions and installation instructions for the Yamaha HAF2-2115(W) speaker cluster. It details how to mount angle indicator plates, suspension plates, and eye bolts to configure the splay angle of the speakers.
The document includes specific steps for installing hardware such as M10 screws, washers, and L-key wrenches. It also covers configurations for tight packing versus maximum splay angles.
The hole closest to the center represents 0 degrees, while the farthest hole is 15 degrees.
For a tight pack, you must use the two outer holes of the speaker.
