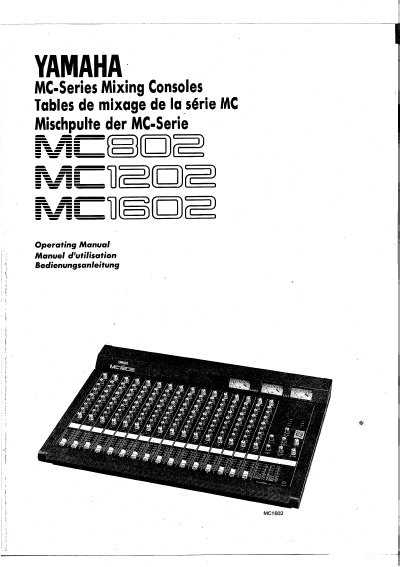

This document is the operating manual for the Yamaha MC-series of mixing consoles. It covers models with 8, 12, or 16 channels, providing instructions on using input channel features such as gain control, three-band equalizers, and auxiliary sends. The guide also details master section controls including stereo outputs, cue systems, and talkback functions.
US & Canadian Models require 120V AC, 60Hz.
The MID FREQ control permits sweeping the midrange center frequency from 350 Hz to 5 kHz.
The consoles offer three independent AUX submix systems for external effects routing or additional power amplifier feeds.
