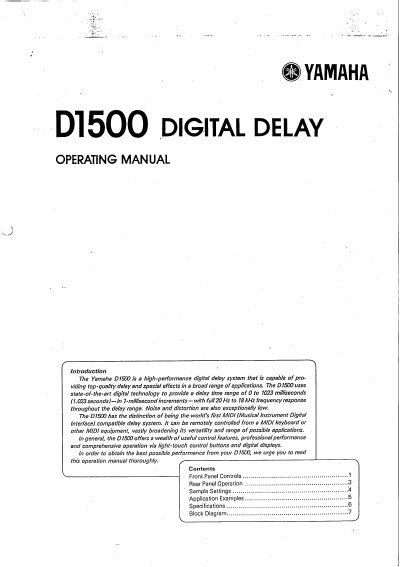

This manual provides instructions for the Yamaha D1500, a high-performance digital delay system capable of providing delay times from 0 to 1023 milliseconds with a frequency response of 20 Hz to 18 kHz. It is the world's first MIDI compatible delay system, allowing remote control from a MIDI keyboard or other MIDI equipment.
The document details the operation of the front panel controls, including the power switch, input and output level controls, bypass and hold switches, and various function keys for programming delay settings. It also explains the use of the 16 memory banks (0 through F) for storing different delay configurations and the MIDI functions for remote control.
| Delay Time Range | 0 to 1023 milliseconds |
|---|---|
| Frequency Response | 20 Hz to 18 kHz |
| Feedback Level Range | 0-99 |
| LFO Depth Range | 0-99 |
Yes, it is the world's first MIDI compatible delay system and can be remotely controlled from a MIDI keyboard.
The unit provides a delay time range of 0 to 1023 milliseconds in 1-millisecond increments.
The device offers a full frequency response from 20 Hz to 18 kHz throughout the delay range.
