DM-105 Microphone manual, including product usage instructions, precautions, etc.

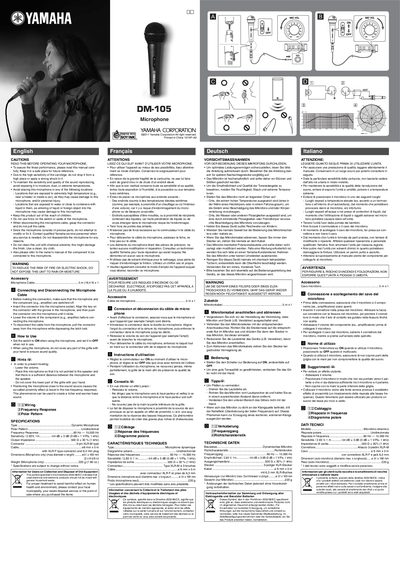

This document is the user manual for the Yamaha DM-105 dynamic microphone. It provides essential safety cautions, such as avoiding moisture, dust, and extreme temperatures, and warns against dropping the unit due to its sensitive cartridge. The guide also details proper procedures for connecting and disconnecting the microphone cable to prevent damage.
| Type | Dynamic Microphone |
|---|---|
| Polar Pattern | Unidirectional |
| Frequency Response | 60 Hz - 15.000 Hz |
| Sensitivity | -54dB +3dB (0dB=1VPa, 1kHz) |
| Output Impedance | 500Ω +30% (1 kHz) |
| Connector | 3-pin XLR-M type |
| Cable Length | 5m |
| Dimensions (Microphone only) | 55 x 169mm |
| Weight (Microphone only) | 220 g |
Before connecting, ensure the microphone and component are switched off. Insert the connector into the socket, aligning the key with the groove, and push until it clicks.
Lower the volume, ensure the microphone is not pointed at the speaker, and maintain a sufficient distance between the microphone and the speaker.
No. Since the microphone consists of precise parts, do not attempt to modify or fix it. Contact qualified Yamaha service personnel for any service needed.
