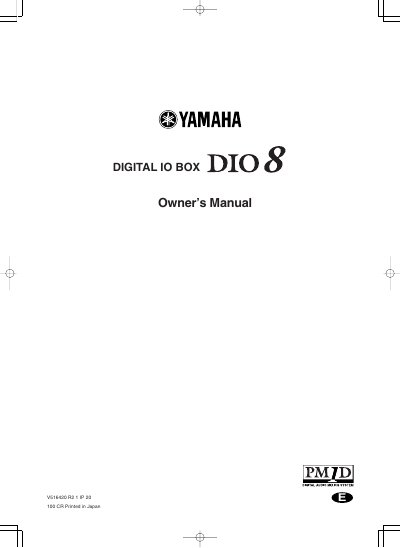

This is a manual of TEAC DIGITAL IO BOX E
The Yamaha DIO8 is a digital I/O box specifically designed for the Yamaha PM1D digital audio mixing system. It facilitates the connection between ADAT, TASCAM, and AES/EBU digital signals and analog signals to/from the DSP1D/DSP1D-EX engine controlled via the CS1D control surface.
The DIO8 is specifically designed for the Yamaha PM1D digital audio mixing system.
The unit outputs and inputs digital signals such as ADAT, TASCAM, and AES/EBU, as well as analog signals.
It indicates the connector number of the engine DSP unit connected to the DIO8.
