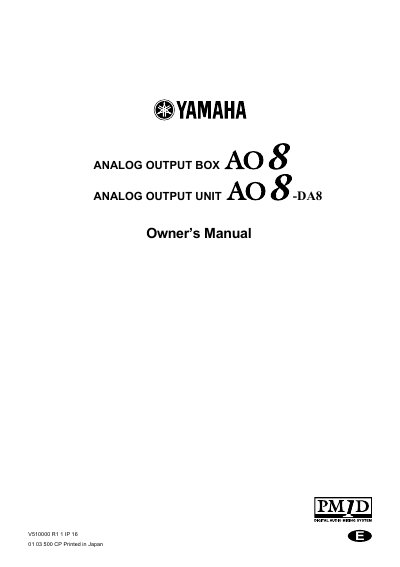

YAMAHA ANALOG OUTPUT BOX AO8 ANALOG OUTPUT UNIT AO8 -DA8 OWNER'S MANUAL

This manual introduces the features and usage of the DA8 analog output box.

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 235 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 4DA358EF7A633E13B85D85F1EEF29A6E
PDF: YAMAHA ANALOG OUTPUT BOX AO8 ANALOG OUTPUT UNIT AO8 -DA8 OWNER'S MANUAL PDF

About this manual

The Yamaha AO8 Analog Output Box is a component designed for the Yamaha PM1D digital audio mixing system. It converts digital signal inputs from the DSP1D/DSP1D-EX engine into analog signals. The unit can accommodate up to six AO8 boxes connected to a single DSP1D/DSP1D-EX engine. Installation and setup must be performed by an authorized Yamaha service engineer.

What's inside

Precautions
Rack Mounting Caution
Front panel
Rear panel
OUTPUT UNIT ID indicator
INPUT SELECTOR switch
POWER ON/OFF
INPUT connectors A and B
WORD CLOCK IN jack
WORD CLOCK OUT jack

Specifications

Sampling frequency (external sync)	39.69 kHz — 50.88 kHz
Power supply (USA and Canada)	120 V, 60 Hz
Power supply (Others)	230 V, 50 Hz
Power consumption	120 W
Dimensions (W x H x D)	480 mm x 141.5 mm x 466.8 mm
Weight	15.4 kg
Operating temperature	10- 35°C

Frequently asked questions

Who should install the AO8 analog output box?

Be sure to ask an authorized Yamaha service engineer to install the card and set up the unit.

How many AO8 units can be connected to a DSP1D?

Up to six AO8s can be connected to each DSP1D/DSP1D-EX.

What is the function of the INPUT SELECTOR switch?

Use this switch to select an input source from the INPUT A or B connector on the rear panel.
