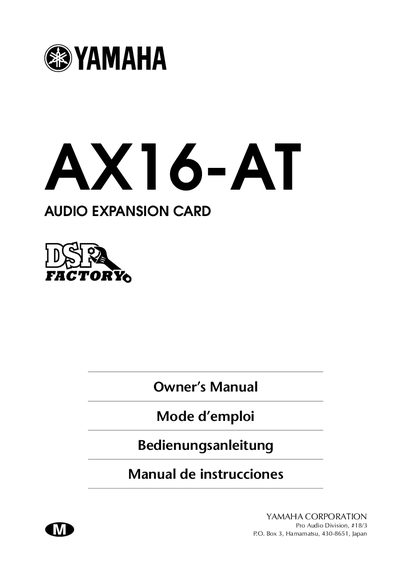

This manual introduces the features and characteristics of the YAMAHA AX16-AT audio expansion card, including system requirements, controls and connections, system connection overview, and installing AX16-AT.
The Yamaha AX16-AT is an ADAT format digital interface card designed to expand the channel capacity of the Yamaha DS2416 Digital Mixing Card. It facilitates the transfer of up to 16 channels of digital audio between the mixing card and compatible devices, such as multitrack recorders or other consoles with ADAT I/O cards.
The document provides instructions for installing the card in either a PCI or ISA bus slot (using an optional bracket), configuring internal switches for wordclock operation, and connecting optical cables to the rear and internal connectors. It also details system requirements and compatibility notes.
The AX16-AT is an ADAT format digital interface card for the Yamaha DS2416 Digital Mixing Card.
Up to 16 channels of ADAT format digital audio can be transferred simultaneously between the DS2416 and an ADAT multitrack recorder or other compatible device.
You need a DS2416-compatible computer with a free PCI or ISA-bus slot, a Yamaha DS2416 Digital Mixing Card, and DS2416-compatible audio software.
