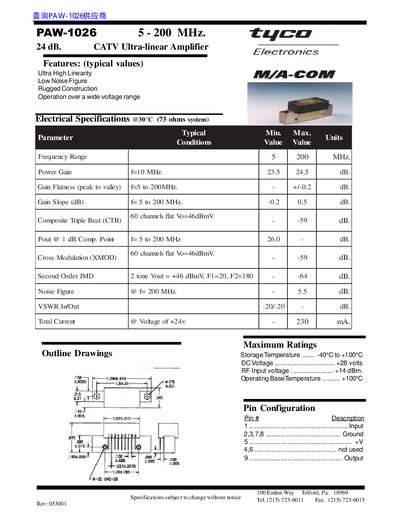

This document provides the electrical specifications of a CATV ultra-linear amplifier. It operates in the frequency range of 5-200 MHz with a gain of 24 dB. It features ultra-high linearity, low noise figure, and rugged construction. It can operate over a wide voltage range.
The TUCO PAW-1026 is a CATV ultra-linear amplifier designed for operation over a wide voltage range. It features ultra-high linearity, a low noise figure, and rugged construction suitable for 75 ohm systems.
The document provides detailed electrical specifications including frequency range, power gain, gain flatness, composite triple beat (CTB), cross modulation (XMOD), and noise figure. It also lists maximum ratings for DC voltage, RF input voltage, and operating temperature, along with a pin configuration diagram.
| Frequency Range | 5 to 200 MHz |
|---|---|
| Power Gain | 23.5 to 24.5 dB |
| Gain Flatness | plus or minus 0.2 dB |
| Composite Triple Beat (CTB) | -59 dB |
| Noise Figure | 5.5 dB |
| Total Current | 230 mA |
| Operating Temperature | +100°C |
| Storage Temperature | -40°C to +100°C |
The amplifier operates over a frequency range of 5 to 200 MHz.
The maximum DC voltage rating is +28 volts.
The total current draw is 230 mA at a voltage of +24v.
