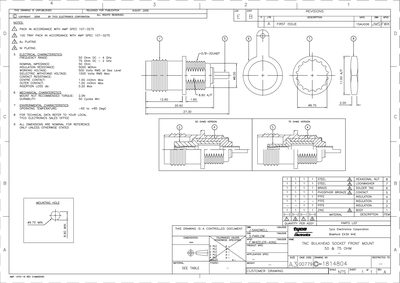

This document is a technical datasheet for the Tyco Electronics SIZE A3 00779 Bulkhead Socket. It provides detailed information on the component's construction materials, including brass ax, solder tag, phosphor bronze contact, and PTFE insulation.
The datasheet specifies electrical characteristics such as frequency range (50 Ohm DC — 4 GHz), nominal impedance, working voltage, and insertion loss. Environmental limits include an operating temperature range of -65 to +85 DegC.
| Frequency Range (50 Ohm) | DC — 4 GHz |
|---|---|
| Frequency Range (75 Ohm) | DC — 2 GHz |
| Nominal Impedance | 50 Ohm |
| Insulation Resistance | 5000 MOhm |
| Working Voltage | 500 Volts RMS at Sea Level |
| Dielectric Withstand Voltage | 1500 Volts RMS Max |
| Centre Contact Resistance | 1.50 mOhm Max |
| Outer Contact Resistance | 1.00 mOhm Max |
| Insertion Loss | 0.20 db Max |
| Mount Nut Recommended Torque | 2.0N - 8.60 A/F ° |
| Durability | 50 Cycles Min |
| Operating Temperature | -65 to +85 DegC |
The component operates between -65 and +85 degrees Celsius.
The working voltage is rated at 500 Volts RMS when operating at sea level.
The socket must withstand a minimum of 50 cycles.
