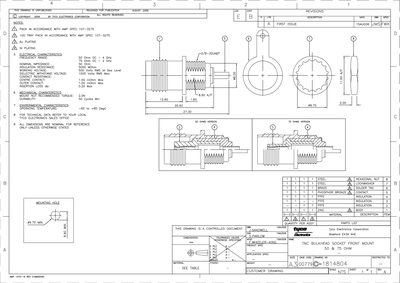

This document is a technical drawing and datasheet for the Tyco Electronics SIZE A3 00779 Bulkhead Socket. It provides controlled dimensions, material descriptions, and assembly details for this specific component.
The datasheet lists comprehensive electrical characteristics including frequency range (DC to 4 GHz), impedance options (50 Ohm and 75 Ohm), working voltage, and contact resistance values. Environmental specifications cover operating temperatures from -65 to +85 DegC.
| Frequency Range (50 Ohm) | DC — 4 GHz |
|---|---|
| Frequency Range (75 Ohm) | DC — 2 GHz |
| Nominal Impedance | 50 Ohm |
| Insulation Resistance | 5000 MOhm |
| Working Voltage | 500 Volts RMS at Sea Level |
| Dielectric Withstand Voltage | 1500 Volts RMS Max |
| Centre Contact Resistance | 1.50 mOhm Max |
| Outer Contact Resistance | 1.00 mOhm Max |
| Insertion Loss | 0.20 db Max |
| Mount Nut Recommended Torque | 2.0N - 8.60 A/F ° |
| Durability | 50 Cycles Min |
| Operating Temperature | -65 to +85 DegC |
The frequency range for the 50 Ohm version is DC to 4 GHz.
The maximum working voltage is 500 Volts RMS at Sea Level.
The centre contact is a maximum of 1.50 mOhm and the outer contact is a maximum of 1.00 mOhm.
