Tyco Electronics SIZE A3 00779 Straight Plug Hex Crimp Datasheet

Brand: TUCO
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 232 KB
Published: 06 June, 2012
Updated: 06 June, 2012
Model: SIZE A3 00779
MD5 checksum: A4D4AAD7F44FAC4DAFE11767AB7CAAA4
PDF: Tyco Electronics SIZE A3 00779 Straight Plug Hex Crimp Datasheet PDF

About this manual

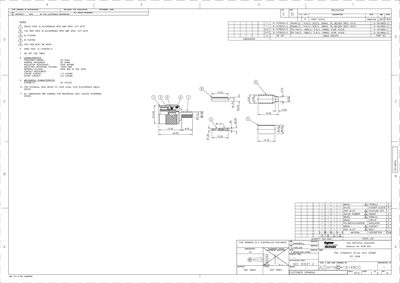

This document is a technical drawing and datasheet for the Tyco Electronics SIZE A3 00779 Straight Plug Hex Crimp. It provides controlled dimensions, material descriptions, and part lists for the assembly.

The document details electrical characteristics such as frequency range (DC—4GHz) and impedance (50 Ohms), along with mechanical durability of 50 cycles. It also includes step-by-step assembly instructions for crimping various cable types.

What's inside

Characteristics
Mechanical Characteristics
Parts List
Assembly Instruction
Dimensions

Specifications

Frequency Range	DC—4GHz
Nominal Impedance	50 OHMS
Insulation Resistance	5000 MOHMS
Dielectric Withstand Voltage	1500V RMS
Working Voltage	500V MAX AT SEA LEVEL
Durability	50 CYCLES

Frequently asked questions

What cables are compatible with the SIZE A3 00779?

Compatible cables include RG58C/U, 141A/U, 303/U, URM43, 76, BELDEN 9907, KX15 for one group, and RG174A/U, 188A/U, 316/U, URM95, KX3B, KX22A for another.

What tool is recommended for crimping?

The document specifies using a hand tool with part number 9-1478240.
