3RP1 series Multifunction Solid State DIN Mount Time Delay Relay is a switch from American Tyco Electronics company. It has 15 time setting ranges, programmable timing range is 0.05s-100hr, work voltage range is 24-240VAC/VDC or fixed input types.

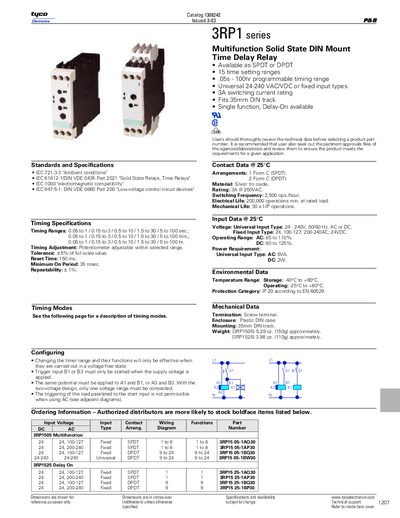

This catalog describes the 3RP1 series of multifunction solid‑state DIN‑mount time‑delay relays, available in SPDT or DPDT configurations with 15 programmable timing ranges from 0.05 s to 100 hr. It includes detailed timing specifications, contact and input data, environmental limits, and mechanical dimensions.
The document also contains wiring diagrams for each timing mode, ordering tables with part numbers, and notes on installation, configuration, and safety precautions. Technical support information and reference to applicable IEC standards are provided at the end of the catalog.
