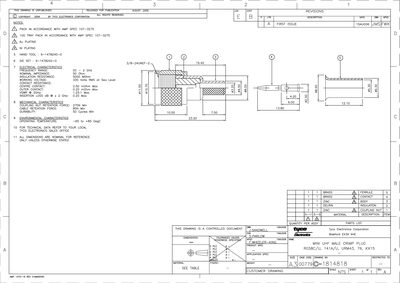

This document is a technical drawing and datasheet for the Tyco Electronics AZ 007793 UHF Male Crimp Plug. It provides controlled dimensions and material descriptions for the assembly, which includes components made of brass, zinc alloy, Delrin insulation, and other materials.
The datasheet lists specific electrical characteristics such as a frequency range from DC to 2 GHz, a nominal impedance of 50 Ohms, and maximum contact resistance values. It also specifies mechanical properties including retention forces for the coupling nut and cable, durability cycles, and operating temperature limits ranging from -65 to +85 DegC.
| Frequency Range | DC - 2 GHz |
|---|---|
| Nominal Impedance | 50 Ohm |
| Insulation Resistance | 5000 MOhm |
| Working Voltage | 335 Volts RMS at Sea Level |
| Centre Contact Resistance | 2.50 mOhm Max |
| Outer Contact Resistance | 0.20 mOhm Max |
| VSWR @ 2GHz | 1.25:1 Max |
| Insertion Loss dB @ x 2 GHz | 0.20 Max |
| Coupling Nut Retention Force | 270N Min |
| Cable Retention Force | 85N Min |
| Durability | 50 Cycles Min |
| Operating Temperature | -65 to +85 DegC |
The frequency range is from DC to 2 GHz.
The nominal impedance is 50 Ohm.
The unit operates from -65 to +85 DegC.
