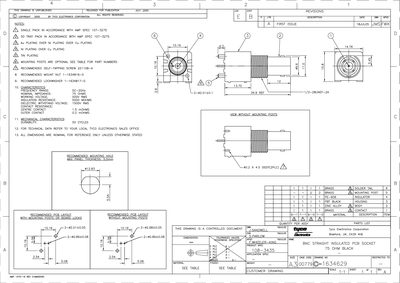

This document is a technical datasheet for the Tyco Electronics AMP 1470-19 REV 3 BNC Straight Insulated PCB Socket. It provides controlled drawing information released in July 2005, specifying that the product complies with AMP Spec 107-3275.
| Frequency Range | DC-2GHz |
|---|---|
| Nominal Impedance | 75 OHMS |
| Working Voltage | 500V RMS |
| Insulation Resistance | 5000 MOHMS |
| Dielectric Withstand Voltage | 1500V RMS |
| Durability | 50 CYCLES |
| Max Panel Thickness | 5.5mm |
The recommended self-tapping screw is part number 221108-4.
The center contact has a resistance of 1.5 mOHMS and the outer contact is 0.2 mOHMS.
