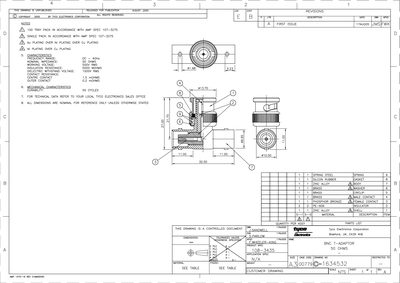

This document is a technical datasheet for the Tyco Electronics SIZE A3 00779 BNC adaptor. It specifies that the drawing was released for publication in August 2005 and contains unpublished information regarding the component's construction and performance.
The datasheet provides key electrical characteristics including a frequency range of DC to 4GHz, a nominal impedance of 50 Ohms, and a working voltage of 500V RMS. It also lists material descriptions for various assembly parts such as spring steel springs, silicon rubber gaskets, zinc alloy bodies, and brass washers.
| Frequency Range | DC — 4GHz |
|---|---|
| Nominal Impedance | 50 OHMS |
| Working Voltage | 500V RMS |
| Insulation Resistance | 5000 MOHMS |
| Dielectric Withstand Voltage | 1500V RMS |
The adaptor is rated for 50 cycles.
Yes, it must be packed in accordance with AMP SPEC 107-3275.
