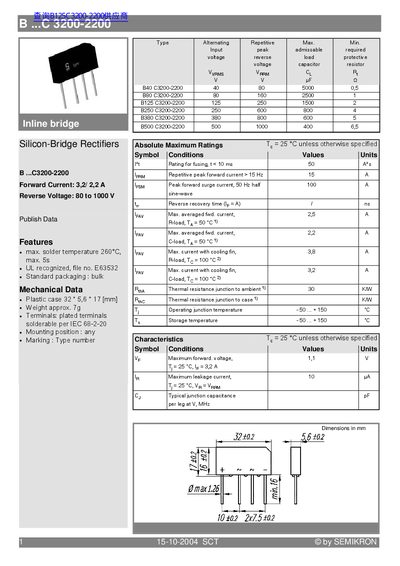

Features of the product:
The B...C 3200-2200 is a silicon‑bridge rectifier with forward current ratings of 3.2 A (continuous) and 2.2 A (repetitive). It supports reverse voltages from 80 V up to 1000 V and complies with UL file no. E63532. The device can be soldered up to 260 °C for a maximum of 5 seconds.
Mechanically, the rectifier is supplied in a bulk plastic case measuring 32 × 5.6 × 17 mm and weighs approximately 7 g. Terminals are plated and solderable per IEC 68‑2‑20, and the component can be mounted in any position. The data sheet also provides absolute maximum ratings, forward voltage, leakage current, and typical characteristic curves.
| Forward Current | 3.2 A / 2.2 A |
|---|---|
| Reverse Voltage | 80 V to 1000 V |
| Maximum Solder Temperature | 260 °C (max 5 s) |
| Package Dimensions | 32 × 5.6 × 17 mm |
| Weight | ≈ 7 g |
| Maximum Averaged Forward Current | 2.2 A |
| Maximum Forward Voltage | 1.1 V |
| Maximum Leakage Current | 10 pA |
| Operating Junction Temperature Range | -50 °C to +150 °C |
The device is rated for a continuous forward current of 3.2 A and a repetitive forward current of 2.2 A.
It can handle reverse voltages ranging from 80 V up to 1000 V.
The plastic case measures 32 × 5.6 × 17 mm and the part weighs about 7 g.
The maximum soldering temperature is 260 °C for up to 5 seconds.
