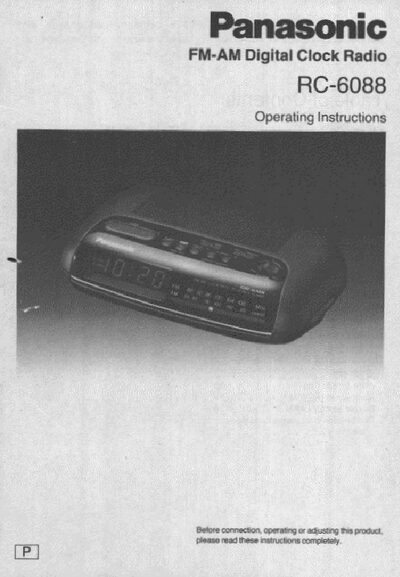

These operating instructions cover safety precautions, installation guidelines, and proper use of the Panasonic RC-6088 FM‑AM Digital Clock Radio. They explain power requirements, battery backup installation, and maintenance procedures to ensure reliable operation.
The manual also describes the dual wake‑up system, doze function, radio sleep timer, and other special features, along with detailed specifications such as power consumption, speaker size, and dimensions.
| Power Requirement | AC; 120 V, 60 Hz |
|---|---|
| Power Consumption | 5 W |
| Battery | 9 V (006P/6F22) |
| FM Radio Frequency Range | 88–108 MHz |
| AM Radio Frequency Range | 525–1705 kHz |
| Speaker Size | 8 cm (3") |
| Dimensions (W×H×D) | 231×60×153 mm (9⅛"×2¾"×6⅛") |
| Weight | 650 g (1 lb. 7 oz) without battery |
Unplug the AC power cord, then replace the 9‑V battery with a new one before reconnecting the power.
Press and hold the off/time set button, then hold the time set buttons until the correct time appears on the display.
When the alarm sounds, pressing the doze button silences it for 7 minutes before it resumes.
Hold the sleep button to set a listening time up to 59 minutes; release it to start the timer, and press the off/time set button to cancel.
