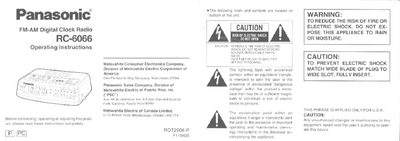

This document provides operating instructions for the Panasonic RC-6066 FM-AM Digital Clock Radio. It details safety precautions, installation requirements regarding environment and placement, and basic maintenance procedures such as cleaning and servicing guidelines.
The manual covers specific operational features including setting the correct time, tuning into radio broadcasts on AM or FM bands, configuring wake-up alarms with buzzer options, utilizing a doze function, and programming a sleep timer. It also explains how to install and replace the 9-volt backup battery to maintain time settings during power interruptions.
| Power Requirement | AC; 120 V, 60 Hz |
|---|---|
| Power consumption | 5 W |
| Back-up battery | 9 V (OO6P/6F22) |
| FM Radio Frequency Range | 88-108 MHz |
| AM Radio Frequency Range | 525-1705 kHz |
| Dimensions (WxHxD) | 200X67X144 mm |
| Weight without battery | 635 g (1 lb. 6 oz) |
The unit requires a 9-Volt battery, specifically model OO6P/6F22.
The back-up battery will be exhausted after about 24 hours of total accumulative use.
Press the ALARM DISP/CANCEL button to shut off the alarm before its automatic shut-off.
Set the SELECTOR to OFF, then press both SLEEP and TIME SET while pressing HOUR or MIN until the desired time appears.
