This document describes the semiconductor products of SANYO Electric Co.,Ltd., and explains the reliability level of these products. The product is an NPN triple diffused planar silicon transistor, suitable for 800V/0.5A switching regulator applications. The product features high breakdown voltage, fast switching speed, and wide ASO.

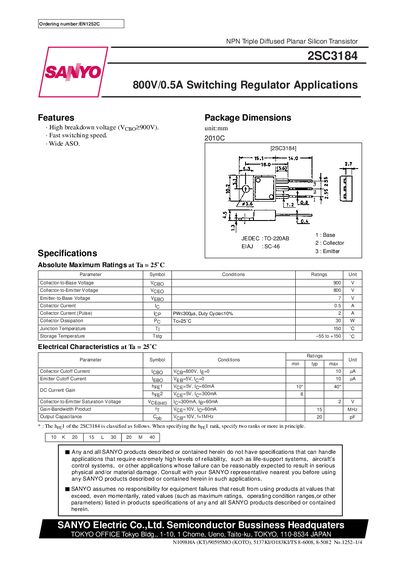

This document is a technical datasheet for the SANYO 2SC3184, an NPN Triple Diffused Planar Silicon Transistor. It provides absolute maximum ratings and electrical characteristics suitable for switching regulator applications.
The datasheet lists key parameters such as collector-to-emitter voltage (VCEO) of 800 V, collector current (IC) of 0.5 A, and a gain-bandwidth product (fT) up to 15 MHz. It also includes detailed graphs for switching times and saturation characteristics.
| Device Type | NPN Triple Diffused Planar Silicon Transistor |
|---|---|
| Collector-to-Emitter Voltage (VCEO) | 800 V |
| Emitter-to-Base Voltage (VEBO) | 7 V |
| Collector Current (IC) | 0.5 A |
| Collector Dissipation (PC) | 30 W |
| Junction Temperature (Tj) | 150 °C |
| Gain-Bandwidth Product (fT) | 15 MHz |
The device has a collector-to-emitter voltage rating of 800 V.
The maximum collector current is rated at 0.5 A.
Pulses must be shorter than 300 microseconds with a duty cycle under 10%.
