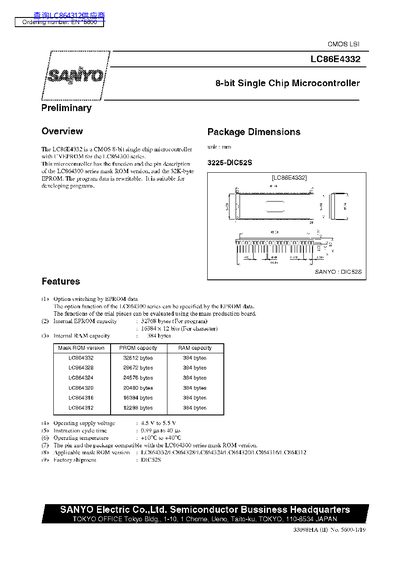

The Sanyo LC86E4332 is a CMOS 8-bit single chip microcontroller unit featuring UVEPROM, designed for the LC864300 series. It offers rewritable program data suitable for developing programs and includes functions compatible with the mask ROM version of the LC864300 series.
Key specifications include an internal EPROM capacity of 32,768 bytes for programs and 16,384 x 12 bits for characters, along with 384 bytes of internal RAM. The device operates with a supply voltage range of 4.5V to 5.5V and supports an operating temperature range of +10°C to +40°C. It features RGB image output terminals (R, G, B) and various input/output ports for timers, interrupts, and analog-to-digital conversion.
| Internal EPROM capacity (Program) | 32,768 bytes |
|---|---|
| Internal EPROM capacity (Character) | 16,384 x 12 bits |
| Internal RAM capacity | 384 bytes |
| Operating supply voltage | 4.5V to 5.5V |
| Instruction cycle time | 0.99 us to 40 us |
| Operating temperature range | +10°C to +40°C |
| Maximum power dissipation | 430 mW |
The LC86E4332 specifies options by degrees until 3 ms after reset, whereas the LC864300 series executes the program immediately after reset.
The operating temperature range is +10°C to +40°C.
The option function is specified by the EPROM data in the program memory area from 7FOOH to 7FFFH.
