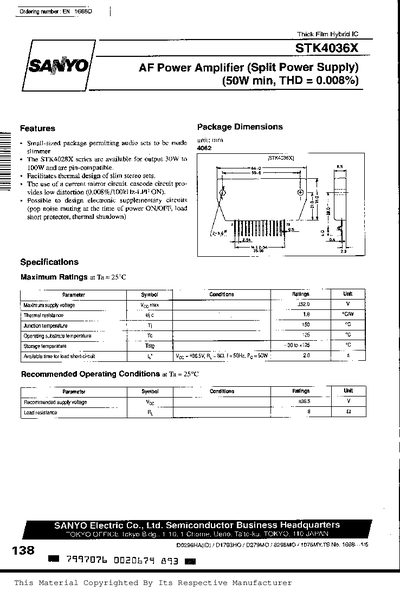

This document is a datasheet for the Sanyo STK4036X, a thick film hybrid IC designed as an AF power amplifier with a split power supply. It features a small-sized package and utilizes a current mirror and cascode circuit to achieve low distortion of 0.008% at 100kHz with the low-pass filter on. The device supports output powers from 30W to 100W and is pin-compatible with the STK4028X series.
| Output Power (Min) | 50W |
|---|---|
| Maximum Supply Voltage | 45V |
| Junction Temperature | 150°C |
| Operating Substrate Temperature | -30 to +125°C |
| Recommended Supply Voltage | ±36.5V |
| Load Resistance (Recommended) | 8Ω |
| Quiescent Current | 18 to 120 mA |
| Output Noise Voltage | 12 mVrms |
The minimum output power is 50W with a total harmonic distortion of 0.008%.
The maximum supply voltage rating is 45V.
