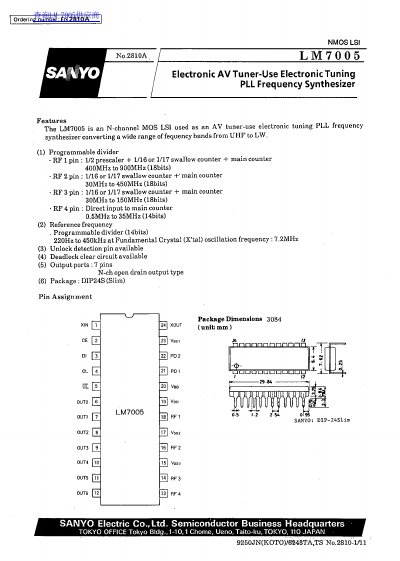

The LM7005 is an N-channel MOS LSI designed as an AV tuner-use electronic tuning PLL frequency synthesizer. It converts a wide range of frequency bands from UHF to LW using a programmable divider and reference frequency circuit.
| Operating Temperature | -40 to +85 °C |
|---|---|
| Storage Temperature | -55 to +125 °C |
| Package Type | DIP24S (Slim) |
| RF1 Input Frequency Range | 400MHz to 900MHz |
| RF2 Input Frequency Range (SP=1) | 100MHz to 450MHz |
| RF3 Input Frequency Range | 30MHz to 150MHz |
| RF4 Input Frequency Range | 0.5MHz to 35MHz |
It is an N-channel MOS LSI used as an AV tuner-use electronic tuning PLL frequency synthesizer.
The guaranteed crystal oscillation frequency is 7.2MHz.
After power on, all 56 bits of serial data must be input to the LM7005 for initialization.
