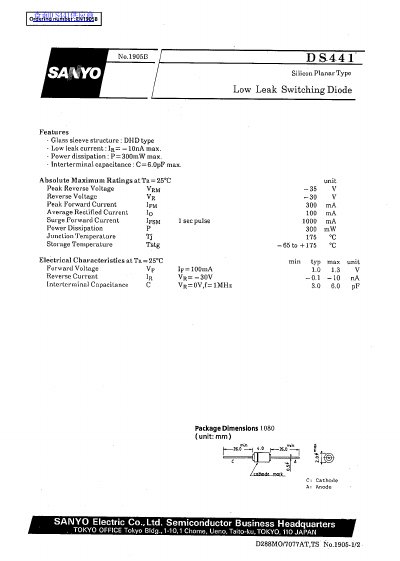

This document is a datasheet for the Sanyo DS441, a silicon planar type low leak switching diode. It features a glass sleeve structure and DHD type packaging. Key specifications include a maximum peak reverse voltage of 35V, a maximum average rectified current of 100mA, and a maximum interterminal capacitance of 6.0pF.
| Product Type | Silicon Planar Type Low Leak Switching Diode |
|---|---|
| Structure Type | Glass sleeve structure |
| Package Type | DHD type |
| Max Peak Reverse Voltage | 35 V |
| Max Reverse Voltage | 30 V |
| Max Peak Forward Current | 3800 mA |
| Max Average Rectified Current | 100 mA |
| Max Surge Forward Current | 1000 mA |
| Max Power Dissipation | 300 mW |
| Max Junction Temperature | 175 °C |
| Storage Temperature Range | -65 to +175 °C |
| Max Interterminal Capacitance | 6.0 pF |
| Typical Forward Voltage | 10-13 V |
| Max Reverse Current | 10 nA |
The absolute maximum rating for the peak reverse voltage is 35 V.
The maximum power dissipation rating is 300 mW.
