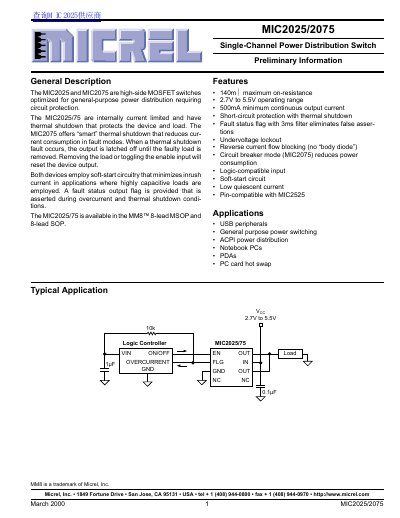

The MIC2025 and MIC2075 are high-side MOSFET switches optimized for general-purpose power distribution requiring circuit protection. The MIC2025/75 are internally current limited and have thermal shutdown that protects the device and load. The MIC2075 offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. Both devices employ soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is provided that is asserted during overcurrent and thermal shutdown conditions. The MIC2025/75 is available in the MM8™ 8-lead MSOP and 8-lead SOP.
The MIC2025 and MIC2075 are high-side MOSFET switches optimized for general-purpose power distribution requiring circuit protection. These devices are internally current limited and include thermal shutdown to protect the device and load. The MIC2075 variant offers a smart thermal shutdown mode that reduces current consumption in fault conditions.
| Maximum On-Resistance | 140 mΩ |
|---|---|
| Operating Voltage Range | 2.7V to 5.5V |
| Minimum Continuous Output Current | 500 mA |
| Package Types | 8-lead SOP, 8-lead MSOP |
| Operating Temperature Range | -40°C to +85°C |
It reduces current consumption in fault modes by latching the output off until the faulty load is removed.
The device output is reset by removing the faulty load or by toggling the enable input.
It is asserted during overcurrent and thermal shutdown conditions to indicate a fault.
