This document is the product information of ZM2BB74W 2.1x0.6mm RIGHT ANGLE SURFACE LED LAMP, including product model, color, emitting material, lens color, luminous intensity, wavelength, viewing angle, voltage, current, power, operating temperature, storage temperature, ESD threshold and other information

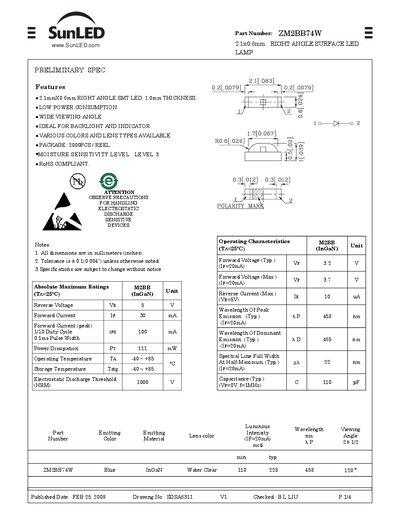

This document provides preliminary specifications for the SunLED ZM2BB74W, a 2.1x0.6mm right angle surface mount LED with 1.0mm thickness. It is designed as a low power consumption device ideal for backlight and indicator applications, available in various colors and lens types.
| Package Dimensions | 2.1mm x 0.6mm, 1.0mm thickness |
|---|---|
| Forward Voltage (Typ.) | 3.2 V |
| Reverse Voltage | 5 V |
| Operating Temperature Range | -40 ~ +85 °C |
| Moisture Sensitivity Level | Level 1 |
The viewing angle is 120 degrees.
Yes, the product is RoHS compliant.
