2.0x1.25mm SMD CHIP LED LAMP ZVG54W-4 is a green led lamp with water clear lens. It has low power consumption and wide viewing angle. It is ideal for backlight and indicator.

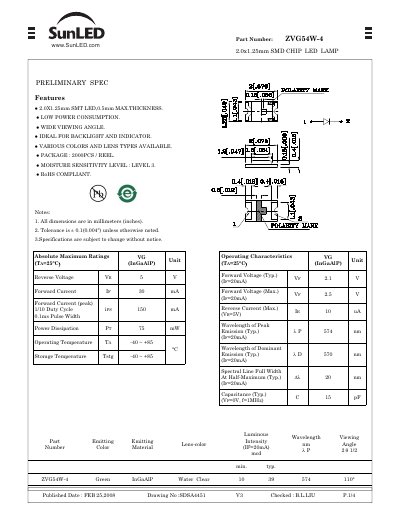

This document is a preliminary specification sheet for the SunLED ZVG54W-4, a 2.0x1.25mm surface-mount device (SMT) LED lamp with a maximum thickness of 0.5mm. It is designed for backlight and indicator applications and features low power consumption with a wide viewing angle.
| Dimensions | 2.0x1.25mm |
|---|---|
| Max Thickness | 0.5mm |
| Emitting Color | Green |
| Forward Current (Max) | 30 mA |
| Operating Temperature Range | -40 ~ +85 °C |
| Moisture Sensitivity Level | Level 3 |
| Package Quantity | 2000PCS / REEL |
The maximum forward current (IF) is 30 mA.
Yes, the document states it is RoHS compliant.
The typical forward voltage (VF) is 2.1 V and the peak wavelength (λP) is 574 nm.
The maximum thickness is 0.5mm.
