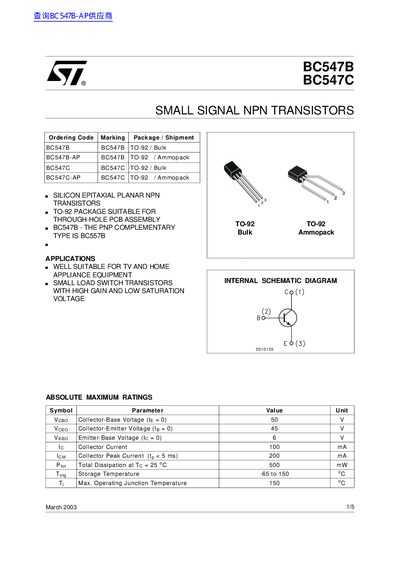

BC547B and BC547C are two small signal NPN transistors. They are silicon epitaxial planar NPN transistors. They are suitable for use in through-hole PCB assembly in TO-92 package. BC547B is the PNP complementary type, with type BC557B. They are well suited for TV and home appliance equipment.
This document provides a technical overview of the BC547B and BC547C silicon epitaxial planar NPN transistors. These devices are housed in a TO-92 package suitable for through-hole PCB assembly and are well-suited for applications such as TV and home appliance equipment.
| Collector-Base Voltage (VCBO) | 50 V |
|---|---|
| Collector-Emitter Voltage (VCEO) | 45 V |
| Emitter-Base Voltage (VEBO) | 6 V |
| Total Dissipation at T C = 25°C | 500 mW |
| Storage Temperature (Tstg) | -65 to 150°C |
The complementary PNP type for BC547B is BC557B.
The TO-92 package is suitable for through-hole PCB assembly.
These transistors are well-suited for TV and home appliance equipment.
