M27W801 is an 8 Mbit low voltage UV EPROM and OTP EPROM. It is ideally suited for microprocessor systems requiring large data or program storage and is organized as 1,048,576 by 8 bits. It operates in the read mode with a supply voltage as low as 2.7V at -40 to 85°C temperature range.

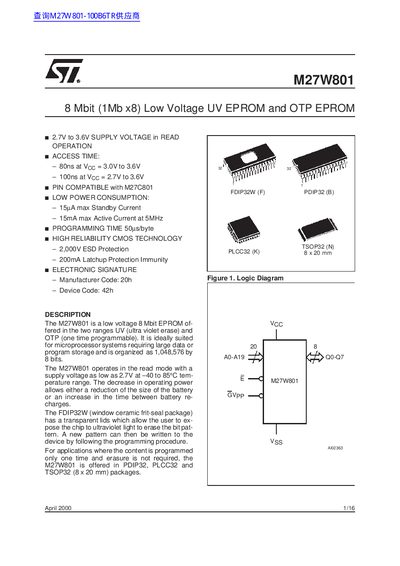

The M27W801 is an 8 Mbit (1Mb x8) EPROM available in both UV (ultra violet erase) and OTP (one time programmable) versions. It is designed for microprocessor systems requiring large data or program storage and is organized as 1,048,576 by 8 bits. The device operates in read mode with a supply voltage as low as 2.7V over a temperature range of -40 to 85°C.
| Memory Capacity | 8 Mbit (1Mb x8) |
|---|---|
| Supply Voltage (Read) | 2.7V to 3.6V |
| Access Time (3.0V-3.6V) | 80ns |
| Access Time (2.7V-3.6V) | 100ns |
| Standby Current (CMOS) | 15uA max |
| Active Current (5MHz) | 15mA max |
| ESD Protection | 2,000V |
| Latchup Protection | 200mA |
UV EPROMs are erased by exposing the chip to ultraviolet light through a transparent lid on the FDIP32W package.
The maximum programming supply voltage (Vpp) is 14V.
The maximum standby current is 15uA.
