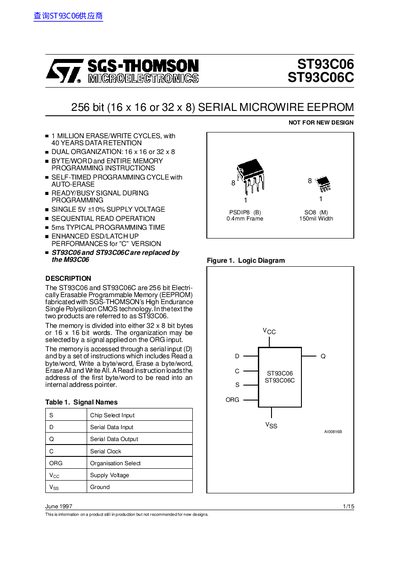

ST93C06 ST93C06C 256-bit (16 x 16 or 32 x 8) Serial Microwire EEPROM not recommended for new designs
The STMicroelectronics ST93C06 and ST93C06C are 256-bit Electrically Erasable Programmable Memory (EEPROM) devices fabricated with High Endurance Single Polysilicon CMOS technology. They offer a dual organization of either 16 x 16 bits or 32 x 8 bits, selectable via the ORG input pin.
These devices operate from a single +5V supply and support sequential read operations as well as byte/word and entire memory programming instructions. The ST93C06C version features enhanced electrostatic discharge (ESD) and latch-up performance compared to the standard ST93C06.
| Capacity | 256 bit (16 x 16 or 32 x 8) |
|---|---|
| Endurance | 1,000,000 erase/write cycles |
| Data Retention | 40 years |
| Programming Time | Typical 5ms |
| Clock Frequency | 0 to 1 MHz |
| Operating Temperature (ST93C06) | -40 to +125 °C |
The ST93C06C version has enhanced ESD and latch-up performance compared to the standard ST93C06.
Yes, it can be selected by a signal applied on the ORG input pin.
No, programming is internally self-timed and does not require an erase cycle prior to the Write instruction.
