STMicroelectronics's STB150NF55/STP150NF55/STW150NF55 N-Channel 55V - 0.005 Ω -120A D²PAK/TO-220/TO-247 STripFET™ II POWER MOSFET is a surface-mounting D2PAK (TO-263) power package. It has a typical RDS(on) of 0.005 Ω and is used for high current, high switching speed applications, such as solenoid and relay drivers, motor control, audio amplifiers, DC-DC & DC-AC converters, and automotive applications.

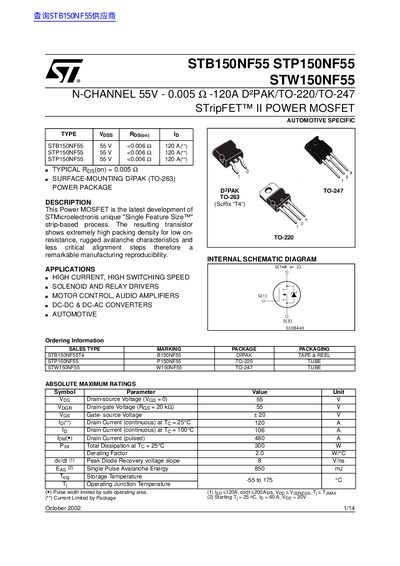

This document provides technical specifications for the STB150NF55, STP150NF55, and STW150NF55 N-channel Power MOSFETs. These devices utilize STMicroelectronics' StripFET II process and are designed for high current and high switching speed applications, including motor control, audio amplifiers, and automotive systems. They are available in D2PAK (TO-263), TO-220, and TO-247 packages.
| Drain-source Voltage | 55 V |
|---|---|
| Drain Current (continuous) | 120 A |
| Operating Junction Temperature | -55 to 175 °C |
| Static Drain-source On Resistance | 0.005 Q |
| Forward Transconductance | 160 S |
The devices are available in D2PAK (TO-263), TO-220, and TO-247 packages.
Yes, the document explicitly states these are 'AUTOMOTIVE SPECIFIC' devices.
The pulse width is limited by the safe operating area, with a typical pulsed current capability of 480 A.
