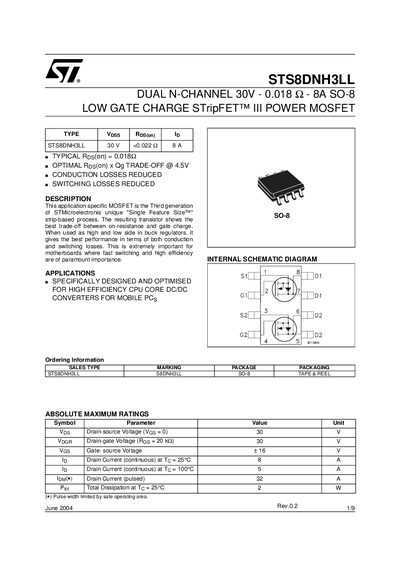

STS8DNH3LL is a dual N-channel 30V - 0.018 Ω - 8A SO-8 low gate charge STripFET™ III POWER MOSFET.
The STS8DNH3LL is a dual N-channel 30V, 0.018 Qg, 8A SO-8 low gate charge STripFET power MOSFET. It is an application-specific device representing the third generation of STMicroelectronics' unique Single Feature Size strip-based process. The transistor is optimized for high efficiency CPU core DC/DC converters for mobile PCs, offering the best trade-off between on-resistance and gate charge to reduce both conduction and switching losses.
| Package | SO-8 |
|---|
The device supports a maximum continuous drain current of 8 A when the case temperature is 25°C.
The typical total gate charge is 7.0 nC when tested with a drain-source voltage of 15 V and a current of 8 A.
The maximum operating junction temperature for this component is 150°C.
