10 mm seven segment displays have industry standard size, industry standard pinout, a variety of colors, excellent appearance, design flexibility and other features

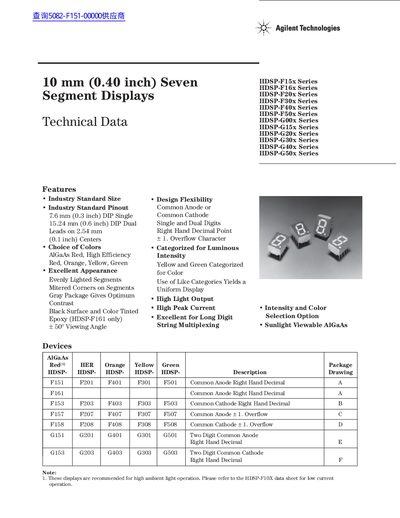

This document provides technical specifications for the Agilent HDSP-F15x Series 10 mm (0.40 inch) seven segment displays. The series includes single and dual digit configurations with common anode or common cathode options, available in Red, Orange, Yellow, and Green colors. These devices are designed for viewing distances up to 4.5 metres and are recommended for high ambient light operation.
| Viewing Distance | up to 4.5 metres (15 feet) |
|---|---|
| Reverse Voltage per Segment | 3.0 V |
| Peak Wavelength (Red) | 645 nm |
| Peak Wavelength (Orange) | 600 nm |
| Peak Wavelength (Yellow) | 583 nm |
| Peak Wavelength (Green) | 566 nm |
| Thermal Resistance Junction-to-Pin | 320 °C/W/Seg |
No, the HDSP-F10X, G10X series displays are recommended for low current operation.
They are designed for viewing distances up to 4.5 metres (15 feet).
