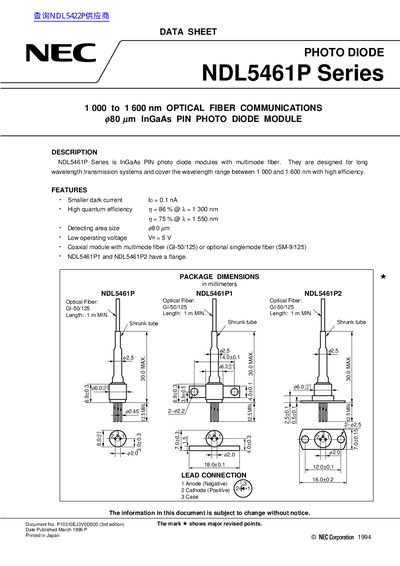

NDL5461P Series is InGaAs PIN photo diode modules with multimode fiber. They are designed for long wavelength transmission systems and cover the wavelength range between 1 000 and 1 600 nm with high efficiency.
The NEC NDL5461P Series consists of InGaAs PIN photo diode modules optimized for multimode fiber applications in long-wavelength transmission systems. These modules operate efficiently within the 1000 to 1600 nm wavelength range, featuring a small dark current of 0.1 nA and high quantum efficiency of up to 86% at 1300 nm. The series includes various configurations with coaxial multimode fiber (GI-50/125) or optional singlemode fiber (SM-9/125), available with or without connectors and flanges depending on the specific part number.
| Wavelength Range | 1000 to 1600 nm |
|---|---|
| Dark Current | 0.1 nA |
| Quantum Efficiency @ 1300 nm | 86 % |
| Quantum Efficiency @ 1550 nm | 75 % |
| Detecting Area Size | 980 pm |
| Operating Voltage | 5V |
| Reverse Voltage (Max) | 20 V |
| Forward Current (Max) | 10 mA |
| Operating Case Temperature | -40 to +85 °C |
The series covers the wavelength range between 1000 and 1600 nm.
The quantum efficiency is 86% at 1300 nm.
