The µPD17P236 is a programmable integrated circuit that can be used to develop and produce remote controllers. It has 32K bytes of program memory and 223×4 bits of data memory. It also has a low-voltage detection circuit that can shut down the circuit when the voltage is below 3.0V.

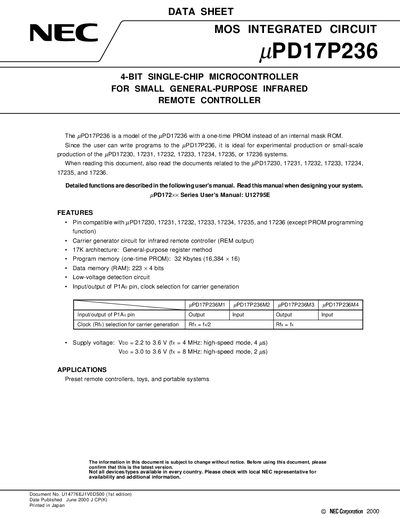

The NEC uPD17P236 is a 4-bit single-chip microcontroller designed specifically for small general-purpose infrared remote controllers. It features a one-time programmable PROM (32 Kbytes) instead of an internal mask ROM, allowing users to write custom programs for experimental or small-scale production of remote control systems. The device is pin-compatible with the uPD17236 series and includes a carrier generator circuit for infrared transmission.
| Program memory size | 32 Kbytes (16,384 x 16) |
|---|---|
| Data memory size | 223 x 4 bits |
| Supply voltage | 2.2 to 3.6 V |
| Instruction execution time (fx = 4 MHz) | 4 us |
| Instruction execution time (fx = 8 MHz) | 2 us |
| Package types | 28-pin plastic SOP, 30-pin plastic SSOP |
The uPD17P236 has a one-time programmable PROM instead of an internal mask ROM.
It is suitable for preset remote controllers, toys, and portable systems.
Yes, it is pin compatible with the uPD17230 through uPD17236 series.
