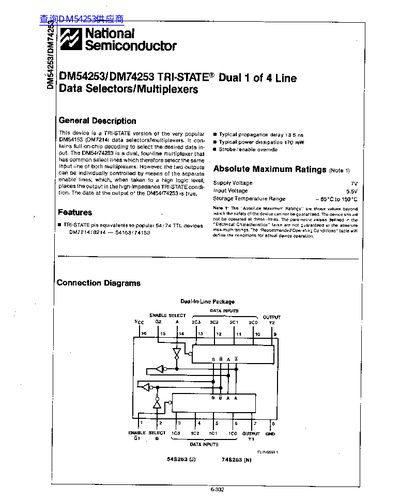

The DM54253/DM74253 is a dual, four-line multiplexer featuring full on-chip decoding to select the desired data input. It includes common select lines for both multiplexers while allowing individual control of the two outputs via separate enable lines. When the enable lines are taken to a high logic level, the outputs enter a high-impedance TRI-STATE condition.
| Typical propagation delay | 13.5 ns |
|---|---|
| Typical power dissipation | 170 mW |
The typical propagation delay is 13.5 ns.
The output enters a high-impedance TRI-STATE condition.
