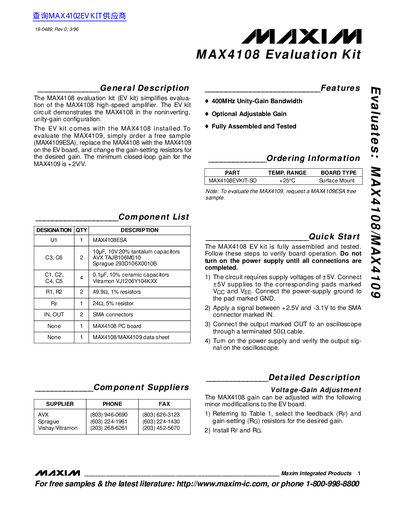

The document is the instruction manual of MAX4108 evaluation board, which mainly introduces the features and usage of the board.
The MAX4108 Evaluation Kit (EV kit) simplifies the evaluation of the MAX4108 high-speed amplifier. The kit comes fully assembled and tested with the MAX4108 installed in a noninverting, unity-gain configuration. It includes the MAX4108 evaluation board, a data sheet, and a list of component suppliers. To evaluate the MAX4109, users can order a free sample, replace the MAX4108 on the board, and adjust the gain-setting resistors for a minimum closed-loop gain of +2V/V.
| Unity-Gain Bandwidth | 400MHz |
|---|---|
| Minimum Closed-Loop Gain (MAX4109) | +2V/V |
| Supply Voltage | +5V |
| Input Signal Range | +2.5V and -3.1V |
Order a free MAX4109ESA sample, replace the MAX4108 on the EV board with the MAX4109, and change the gain-setting resistors for the desired gain.
The minimum closed-loop gain for the MAX4109 is +2V/V.
