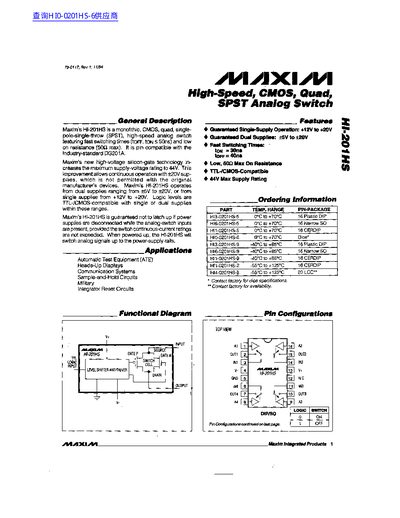

The Maxim HI-201HS is a monolithic, CMOS, quad, single-pole-single-throw (SPST), high-speed analog switch featuring fast switching times (tON = 30ns) and low on resistance (50Ω max). It utilizes high-voltage silicon-gate technology to support a maximum supply voltage rating of 44V, allowing continuous operation with +20V supplies. The device is pin compatible with the industry-standard DG201A and operates from dual supplies ranging from +5V to +20V, or single supplies from +12V to +20V.
| Max Supply Voltage Rating | 44V |
|---|---|
| Operating Temperature Range | -55°C to +125°C |
The device features a maximum supply-voltage rating of 44V.
Yes, it is pin compatible with the industry-standard DG201A.
The device guarantees single-supply operation from +12V to +20V.
