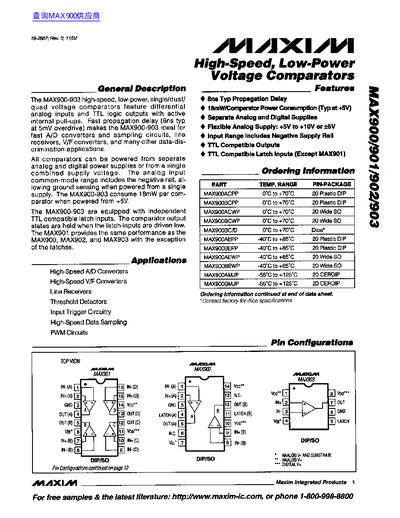

The MAX900-903 are single/dual/quad voltage comparators featuring differential analog inputs and TTL logic outputs. They offer a fast typical propagation delay of 8ns at 5mV overdrive and consume only 18mW per comparator when powered from +5V. These devices are ideal for high-speed A/D converters, sampling circuits, line receivers, V/F converters, and data discrimination applications.
| Typical Propagation Delay | 8ns |
|---|---|
| Comparator Power Consumption | 18mW/Comparator |
| Analog Supply Voltage Range | +5V to +10V or +5V |
| Input Offset Voltage (MAX900A) | Max 2mV |
| Latch Input Current High | 1 pA |
Yes, all comparators can be powered from separate analog and digital power supplies or from a single combined supply voltage.
The typical propagation delay is 8ns when powered at 5mV overdrive.
Each comparator consumes 18mW when powered from +5V.
The permissible analog power-supply range is +4.75V to +10.5V for single-supply operation with VEE grounded.
