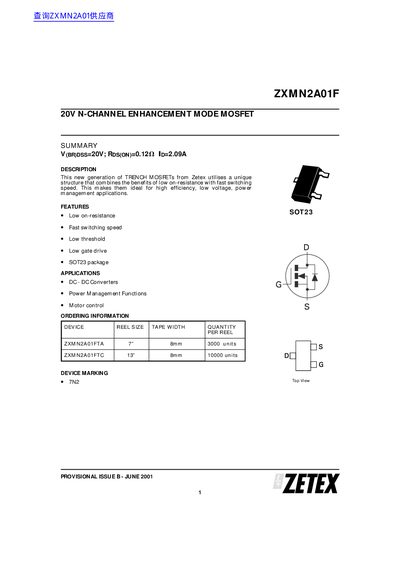

Zetex ZXMN2A01F N-Channel Enhancement Mode MOSFET Datasheet

This ZXMN2A01F is a N-channel enhancement mode MOSFET from Zetex, it has a low on-resistance and fast switching speed, ideal for high efficiency, low voltage power management applications

Brand: Zetex
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 84 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 5E58B79791FC2398FE5B1D33312F1AC6
PDF: Zetex ZXMN2A01F N-Channel Enhancement Mode MOSFET Datasheet PDF

About this manual

This document is a provisional datasheet for the Zetex ZXMN2A01F, a 120V N-Channel Enhancement Mode MOSFET. It highlights features such as low on-resistance, fast switching speed, and a low threshold voltage, making it suitable for high efficiency, low voltage power management applications like DC-DC converters and motor control. The device is available in a SOT23 package.

What's inside

Description
Features
Applications
Ordering Information
Device Marking
Absolute Maximum Ratings
Thermal Resistance
Electrical Characteristics
Package Dimensions

Specifications

Drain-Source Voltage	20 V
Package Type	SOT23
Operating Temperature Range	-55 to +150 °C

Frequently asked questions

What are the main applications for the ZXMN2A01F?

The device is ideal for DC-DC converters, power management functions, and motor control.

What is the package type for the ZXMN2A01F?

The ZXMN2A01F is supplied in a SOT23 package.
