This data sheet provides the features of the 74ABT16501A/74ABTH16501A, which is an 18-bit bidirectional bus transceiver with 3-state buffers, output capability of +64mA/-32mA, TTL input and output switching levels, power-up reset, power-up 3-state, positive edge-triggered clock inputs and so on.

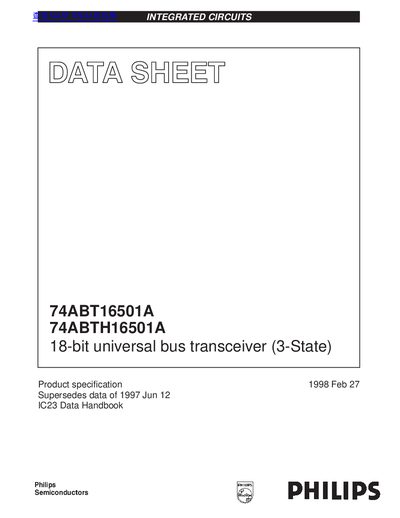

This document is a product specification for the Philips 74ABT16501A and 74ABTH16501A, which are high-performance 18-bit universal bus transceivers designed for bidirectional bus interface applications. These devices utilize high-performance BiCMOS technology to combine low static and dynamic power dissipation with high speed and high output drive capabilities.
| Data Width | 18-bit |
|---|---|
| Output Capability | +64mA/-32mA |
| Supply Voltage (VCC) | 4.5V to 5.5V |
| Operating Temperature | -40°C to +85 °C |
| Package Type | 56-Pin Plastic SSOP/TSSOP |
| Latch-up Protection | exceeds 500mA |
The 74ABTH16501A incorporates bus-hold data inputs which eliminate the need for external pull-up resistors, whereas the 74ABT16501A does not have this feature.
Yes, live insertion and extraction are permitted for these devices.
The quiescent supply current is 9 mA when the outputs are low and VCC is 5.5V.
