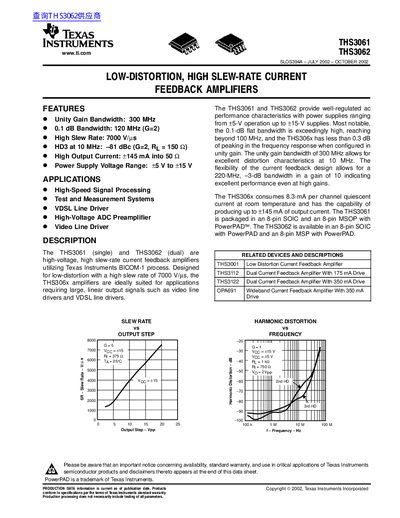

This datasheet introduces Texas Instruments' THS3061 and THS3062 high-voltage, high slew-rate current feedback amplifiers, which use the Texas Instruments BICOM-1 process. Designed for low distortion and a high slew rate of 7000 V/µs, the THS306x amplifiers are ideally suited for applications requiring large, linear output signals such as video line drivers and VDSL line drivers.
The THS3061 (single) and THS3062 (dual) are high-voltage, high slew-rate current feedback amplifiers utilizing Texas Instruments BICOM-1 process. Designed for low-distortion with a high slew rate of 7000 V/s, these amplifiers are ideally suited for applications requiring large, linear output signals such as video line drivers and VDSL line drivers.
The devices provide well-regulated AC performance characteristics with power supplies ranging from +5-V operation up to +15-V supplies. The THS3061 is packaged in an 8-pin SOIC and an 8-pin MSOP with PowerPAD, while the THS3062 is available in an 8-pin SOIC with PowerPAD and an 8-pin MSP with PowerPAD.
| Unity Gain Bandwidth | 300 MHz |
|---|---|
| 0.1 dB Bandwidth (G=2) | 120 MHz |
| High Slew Rate | 7000 V/s |
| HD3 at 10 MHz | -81 dBe |
| High Output Current | +145 mA into 50 Ω |
| Power Supply Voltage Range | +5 V to +15 V |
They are suited for high-speed signal processing, test and measurement systems, VDSL line drivers, high-voltage ADC preamplifiers, and video line drivers.
